Details

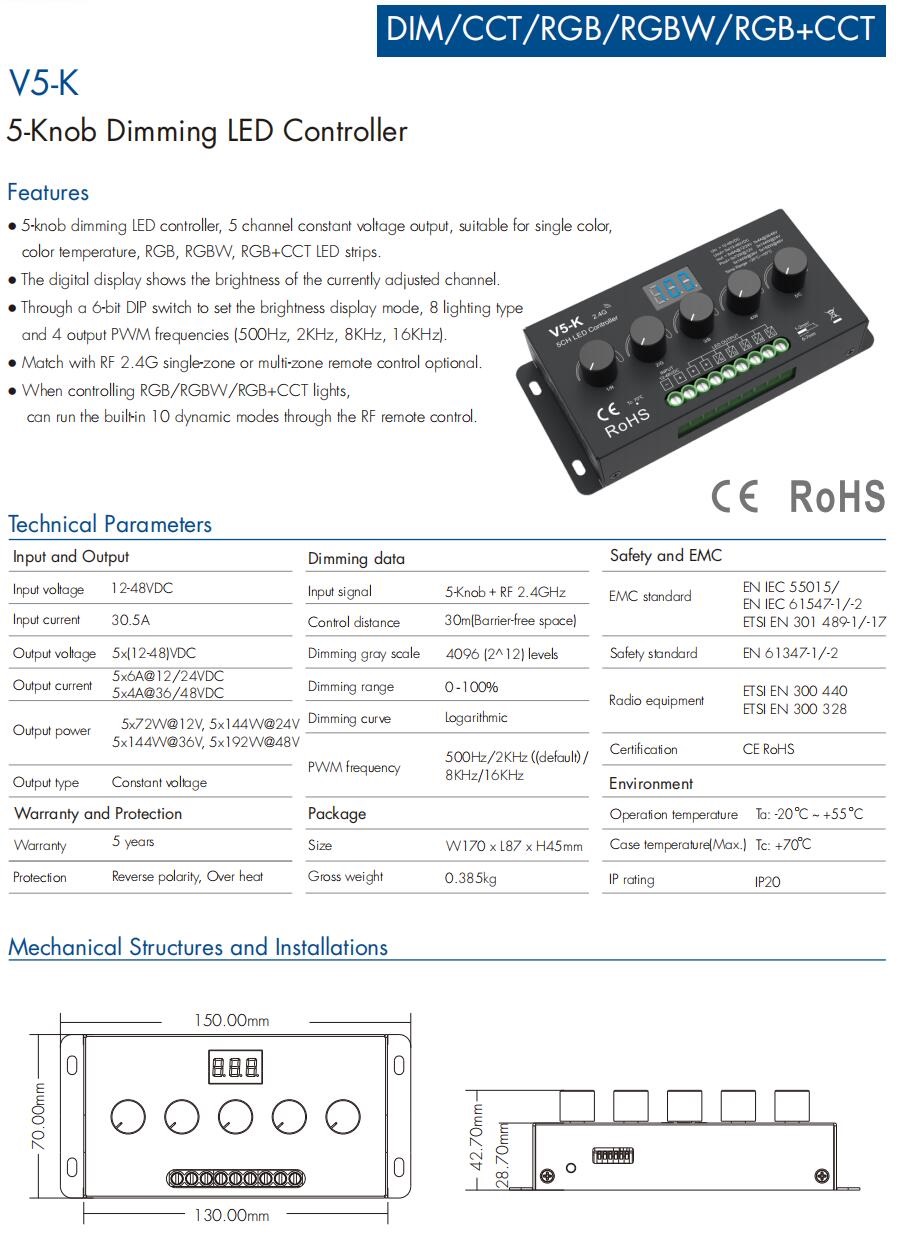

Technical parameter
Input voltage: 12‑48VDC
Input current: 30.5A
Output voltage: 5x(12‑48)VDC
Output current: 5x6A@12/24VDC / 5x4A@36/48VDC
Output power: 5x72W@12V / 5x144W@24V / 5x144W@36V / 5x192W@48V
Output type: Constant voltage
Warranty: 5 years
Protection: Reverse polarity, Over heat
Dimming data
Input signal: 5‑Knob + RF 2.4GHz
Control distance: 30m(Barrier‑free space)
Dimming gray scale: 4096 (2^12) levels
Dimming range: 0‑100%

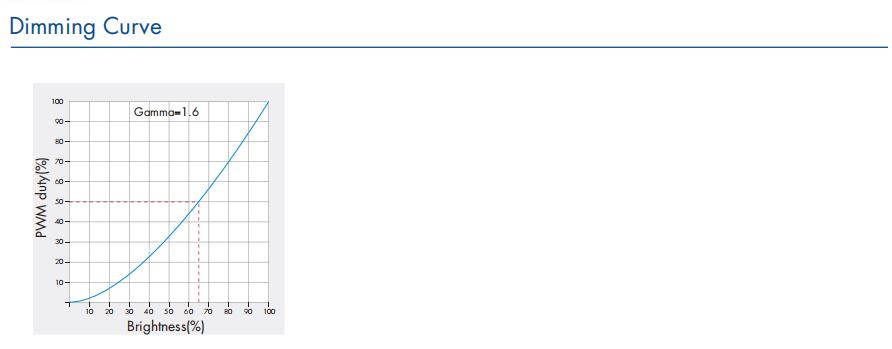

Dimming curve: Logarithmic
PWM frequency: 500Hz/2KHz((default)/8KHz/16KHz
Package
Size：W170 x L87 x H45mm
Gross weight：0.385kg
Safety and EMC
EMC standard：EN IEC 55015/
EN IEC 61547‑1/-2
ETSI EN 301 489‑1/-17
Safety standard：EN 61347‑1/-2
Radio equipment：ETSI EN 300 440
ETSI EN 300 328
Certification：CE/RoHS
Environment
Operation temperature：Ta:‑20℃ ~ +55℃
Case temperature(Max.)：Tc: +70℃
IP rating：IP20
Feature

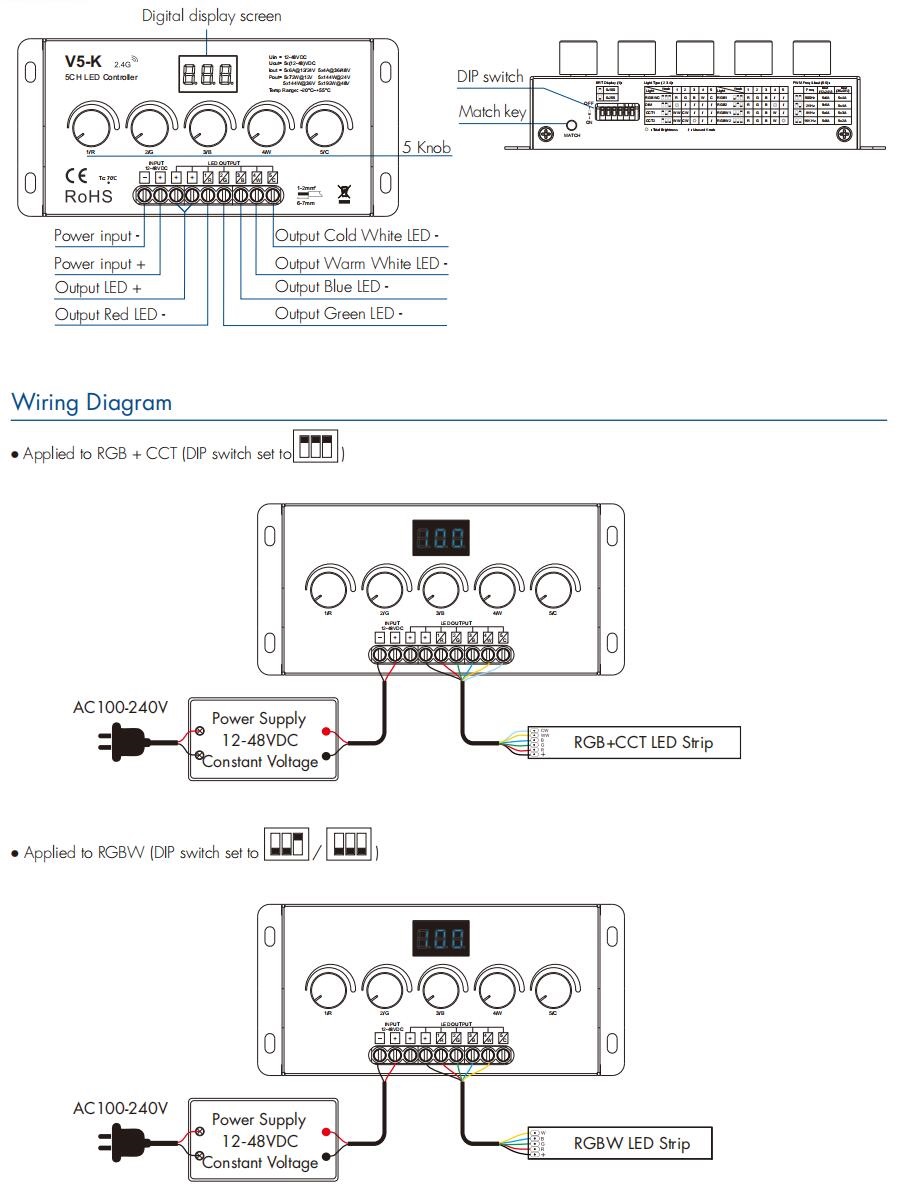

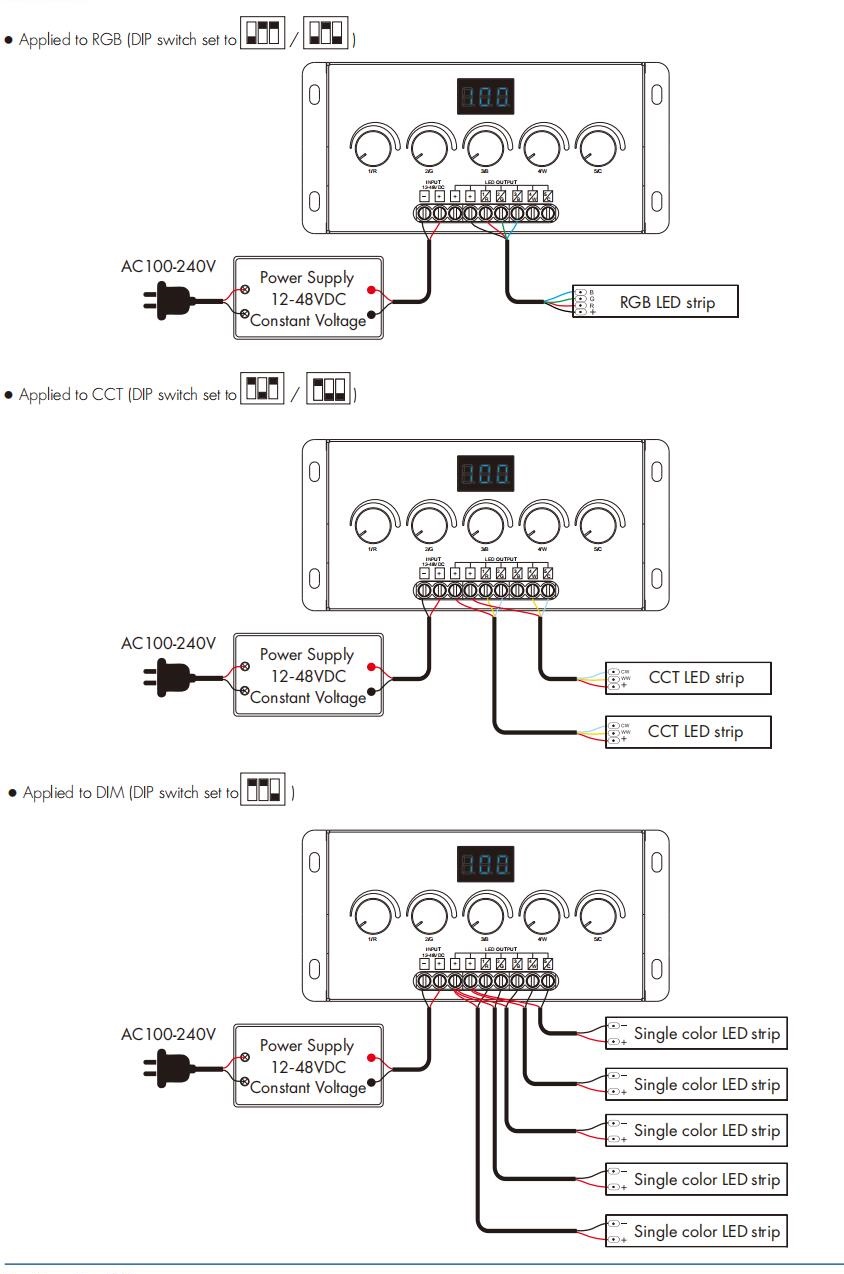

5‑knob dimming LED controller, 5 channel constant voltage output, suitable for single color, color temperature, RGB, RGBW, RGB+CCT LED strips.
The digital display shows the brightness of the currently adjusted channel.

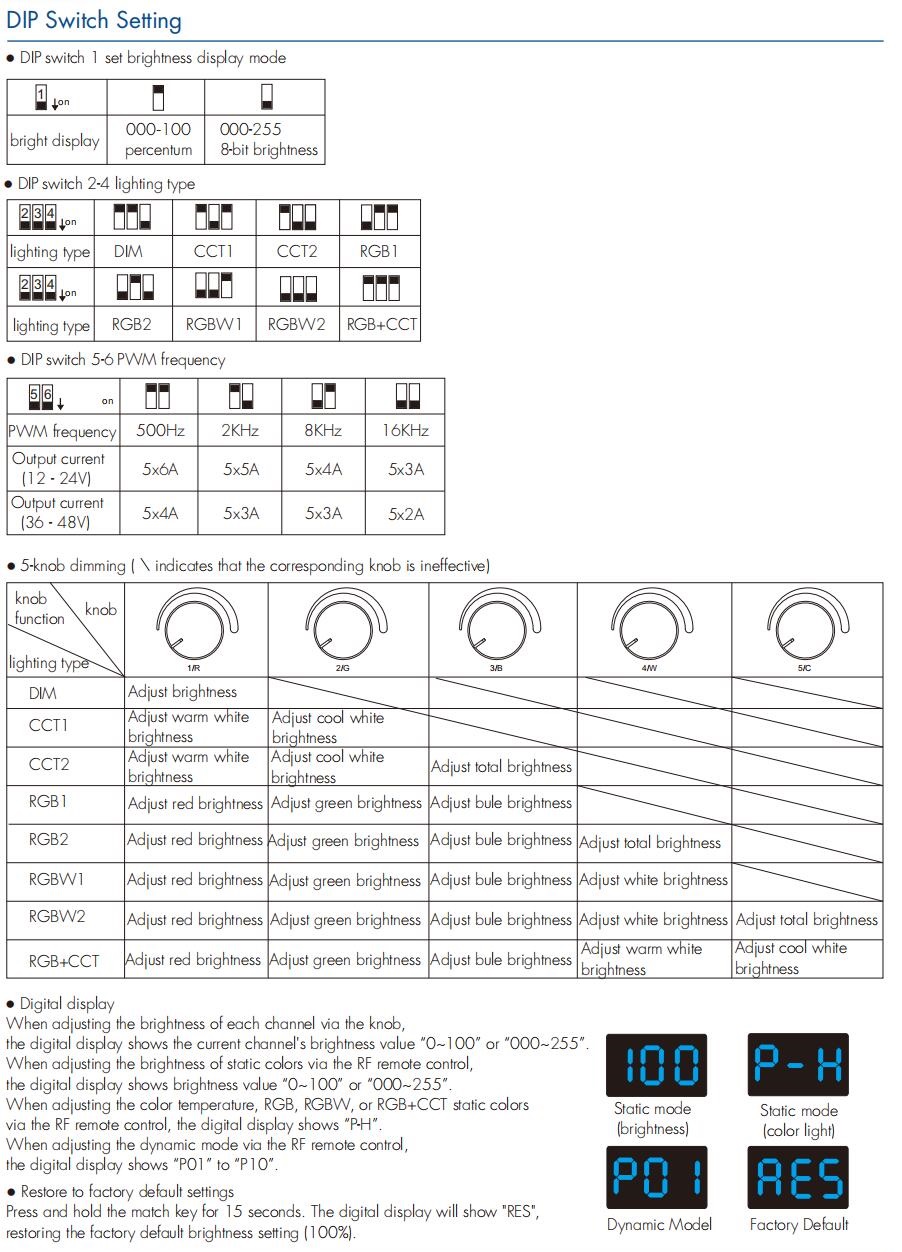

Through a 6‑bit DIP switch to set the brightness display mode, 8 lighting type and 4 output PWM frequencies (500Hz, 2KHz, 8KHz, 16KHz).
Match with RF 2.4G single‑zone or multi‑zone remote control optional.

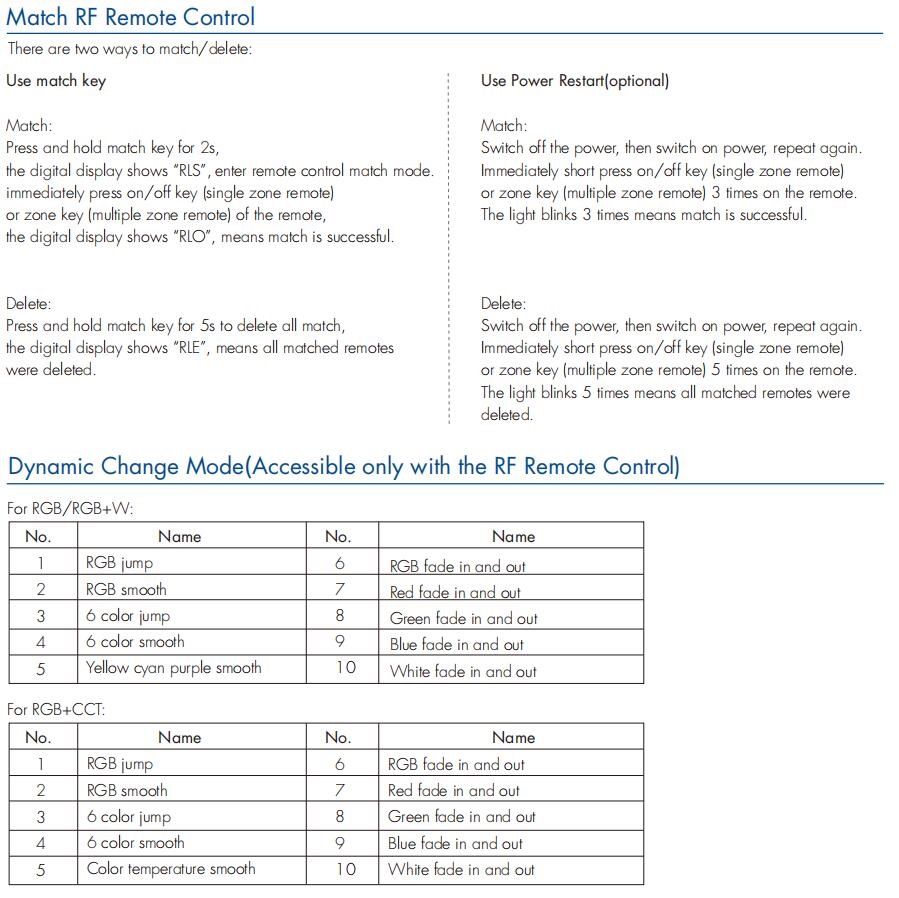

When controlling RGB/RGBW/RGB+CCT lights, can run the built‑in 10 dynamic modes through the RF remote control.
Package Included:
1 Piece of Skydance V5-K 5-Knob CV Dimming Led Controller 5CH*6A 12-48Vdc
1 Piece of User's Manual
Technical parameter
Input voltage: 12‑48VDC
Input current: 30.5A
Output voltage: 5x(12‑48)VDC
Output current: 5x6A@12/24VDC / 5x4A@36/48VDC
Output power: 5x72W@12V / 5x144W@24V / 5x144W@36V / 5x192W@48V
Output type: Constant voltage
Warranty: 5 years
Protection: Reverse polarity, Over heat
Dimming data
Input signal: 5‑Knob + RF 2.4GHz
Control distance: 30m(Barrier‑free space)
Dimming gray scale: 4096 (2^12) levels
Dimming range: 0‑100%
Dimming curve: Logarithmic
PWM frequency: 500Hz/2KHz((default)/8KHz/16KHz
Package
Size：W170 x L87 x H45mm
Gross weight：0.385kg
Safety and EMC
EMC standard：EN IEC 55015/
EN IEC 61547‑1/-2
ETSI EN 301 489‑1/-17
Safety standard：EN 61347‑1/-2
Radio equipment：ETSI EN 300 440
ETSI EN 300 328
Certification：CE/RoHS
Environment
Operation temperature：Ta:‑20℃ ~ +55℃
Case temperature(Max.)：Tc: +70℃
IP rating：IP20
Feature
5‑knob dimming LED controller, 5 channel constant voltage output, suitable for single color, color temperature, RGB, RGBW, RGB+CCT LED strips.
The digital display shows the brightness of the currently adjusted channel.
Through a 6‑bit DIP switch to set the brightness display mode, 8 lighting type and 4 output PWM frequencies (500Hz, 2KHz, 8KHz, 16KHz).
Match with RF 2.4G single‑zone or multi‑zone remote control optional.
When controlling RGB/RGBW/RGB+CCT lights, can run the built‑in 10 dynamic modes through the RF remote control.
Package Included:
1 Piece of Skydance V5-K 5-Knob CV Dimming Led Controller 5CH*6A 12-48Vdc
1 Piece of User's Manual
CE and RoHS approved
