Bincolor DC 12V-24V BC-844 controller constant voltage DMX512-RDM decoder

Be the first to review this product

Availability: In stock

£28.74
  • OR

    Quick Overview

    Bincolor DC 12V-24V BC-844 controller constant voltage DMX512-RDM decoder is durable and popular for LED Lighting decoration, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED items, Pls feel free to contact service@ledlightingsave.com

    ledlightingsave.com offer high quality products and excellent service, so a lot of customers become our loyal customers after they first buy. Quick Shipping with Tracking, Easy and Safe Payment via PayPal.

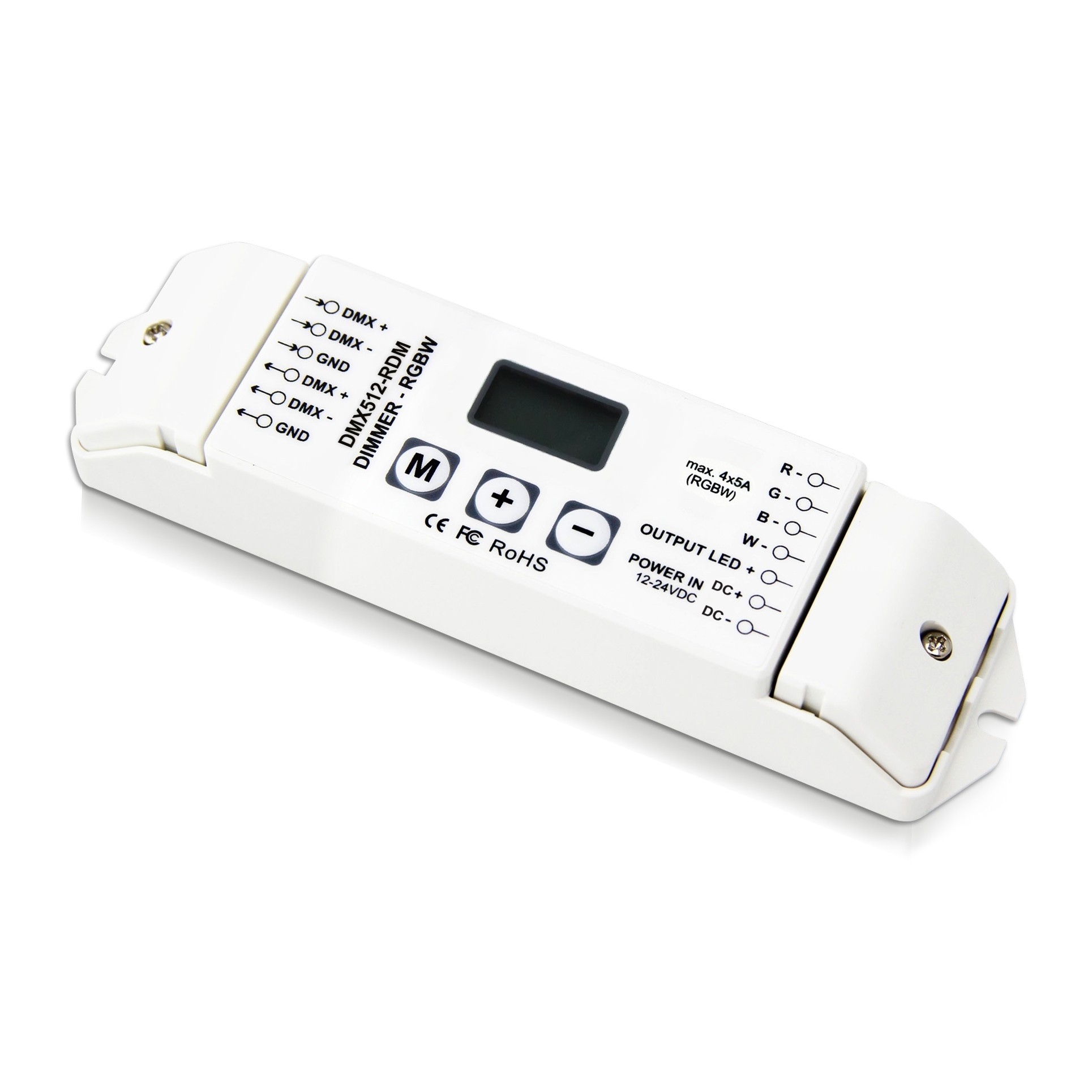

    Bincolor DC 12V-24V BC-844 controller constant voltage DMX512-RDM decoder

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard RDM-DMX512/1990 signal to PWM signal. User can choose 1~4 output channels, 65536 gray scales, workable for single color, color temperature, RGB and RGBW led lamp.

    Feature function:

    1.  Easy operation with OLED screen and touch buttons.

    2.  8bit (256 levels)/16bit (65536 levels) grey level optional.

    3.  With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.

    4.  Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.

    5.  Power-off data saved function.

    6.  Over current protection and short circuit protection.

    Product parameter:

    Model:BC-844

    Input voltage:DC12V-24V

    Max load current:5A×4CH, Max 20A

    Max output power:240W(12V)/480W(24V)

    Scale Levels:256 levels(8bit)/65536 levels(16bit)

    Input signal:DMX512/RDM

    Output Signal:Constant Voltage PWM×4CH

    Output frequency:3K、6K、12K、24K selectable

    DMX512 socket:Terminal block

    Control mode:DIM /CT /RGB /RGBW 4 modes switch

    Dimension:L176 X W46 X H30(mm)

    Weight (G.W):140g

    Package Content:

    1 Piece of Bincolor DC 12V-24V BC-844 constant voltage DMX512-RDM decoder controller

    1 Piece of User's manual

    Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_1
    Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_2
    Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_3
    Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_4
    Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_5
    Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_6
    Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_7
    Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_8
    Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_9
    Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_10

    CE and RoHS approved
