PX24500 RGB Controller DMX512 Decoder For 12V 24V LED Product

Be the first to review this product

Availability: In stock

£11.61
  • Buy 24 for £11.26 each and save 4%
  • Buy 100 for £10.91 each and save 7%
  • OR

    Quick Overview

    PX24500 RGB Controller DMX512 Decoder For 12V 24V LED Product is durable and popular for LED Lighting decoration, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED items, Pls feel free to contact service@ledlightingsave.com

    ledlightingsave.com offer high quality products and excellent service, so a lot of customers become our loyal customers after they first buy. Quick Shipping with Tracking, Easy and Safe Payment via PayPal.

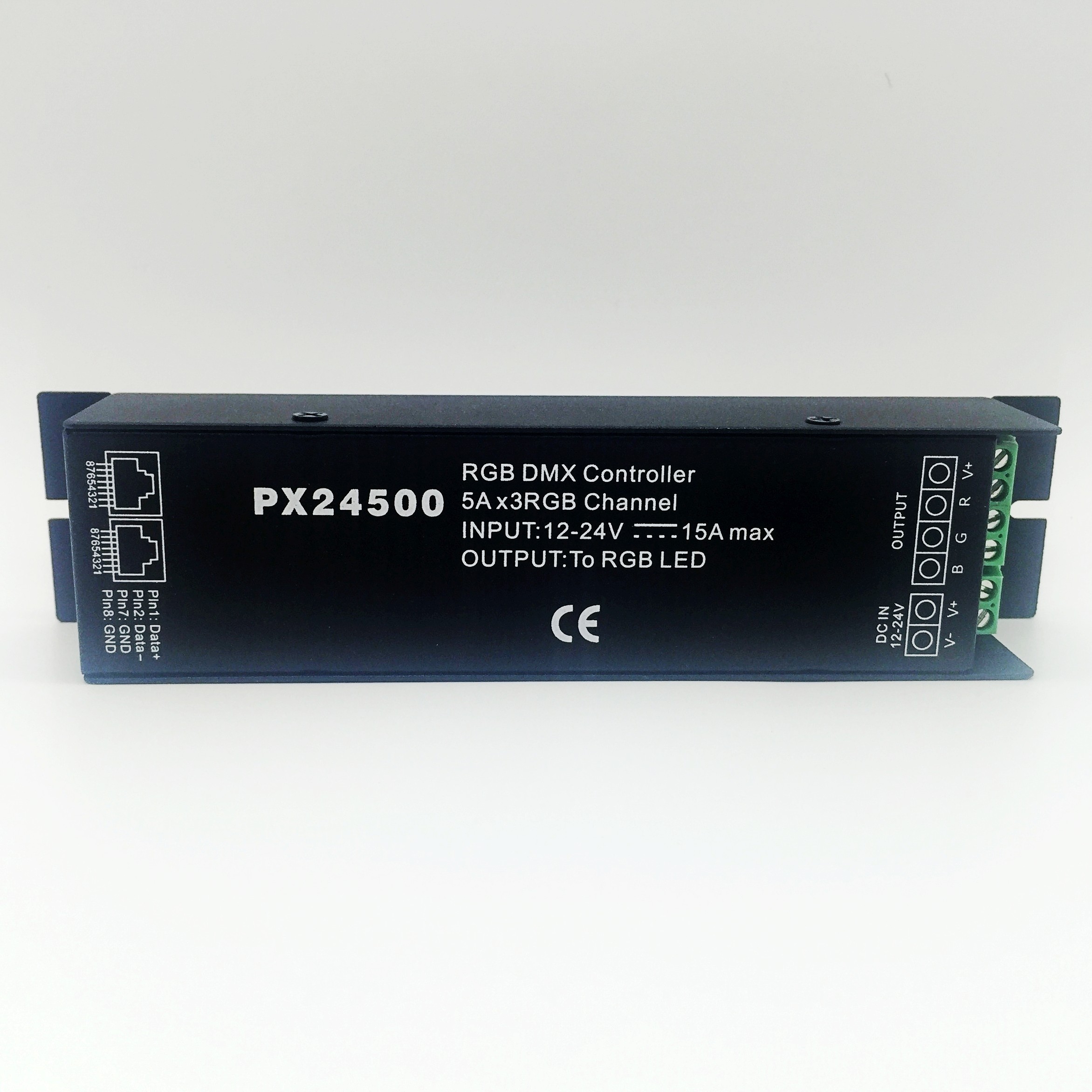

    PX24500 RGB Controller DMX512 Decoder For 12V 24V LED Product

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    The most popular DMX driver PX24500, which offers you to connect your RGB LED light strips or RGB LED Modules to DMX512 or DMX1990 lighting controllers. Then by using PWM and DMX software, you can change the color and dimming of your RGB LED lights. For 12 to 24VDC systems only. Includes one 6' Cat5 cable with RJ45 jack connectors.
    5A per channel with a maximal power of 180W/12V DC or 360W/24V DC. For use with 4 pin, 3 loops, common anode style RGB LED and LED Lighting. Can be connected to DMX512 signal using RJ45 connectors and Cat5 cables. Unit has DIP switches on the side to manually change the DMX address of each driver. Each PX24500 Driver uses 3 DMX addresses. RGB LEDs and power supply are connected using screw down style connectors. RoHS, CE approved.
    Full color 16 million colors and 256 grey level.

    Decode channel: 1~3

    Input signal: DMX512(1990)

    Output signal: 0~24V PWM signal

    Power supply: DC 12~24V

    Power: <5w

    Power output: <24V; <12V

    Operating temperature: 0~70 Celsius

    DMX type: DMX 512, DMX 1990

    Power: 180W/12V DC, 360W/24V DC

    Rating: Dry

    Can be used on 12V or 24V DC

    5A Per Channel, 3*5 = 15A

    Size: L18 x H3.5 x W4 cm

    Fully dip switch enabled

    Perfect for any RGB LED products - excepting the Par & MR16 RGB LED bulb.

    PX24500_DMX512_LED_decoder_controllerPX24500_DMX512_LED_decoder_RGB_controllerPX24500_DMX512_LED_decoder_controller_manualPX24500_RGB_DMX512_LED_decoder_controllerPX24500_RGB_DMX512_LED_decoder_controller_port

    Package Included:

    1 piece of PX24500 RGB Controller DMX512 Decoder For 12V 24V LED Product

    1 piece of Wire Connector

    CE and RoHS approved
